OmniaTap
Bs. 0.00Bs. 0.00
The powerful all-rounder.
For H2O pure type I + II.

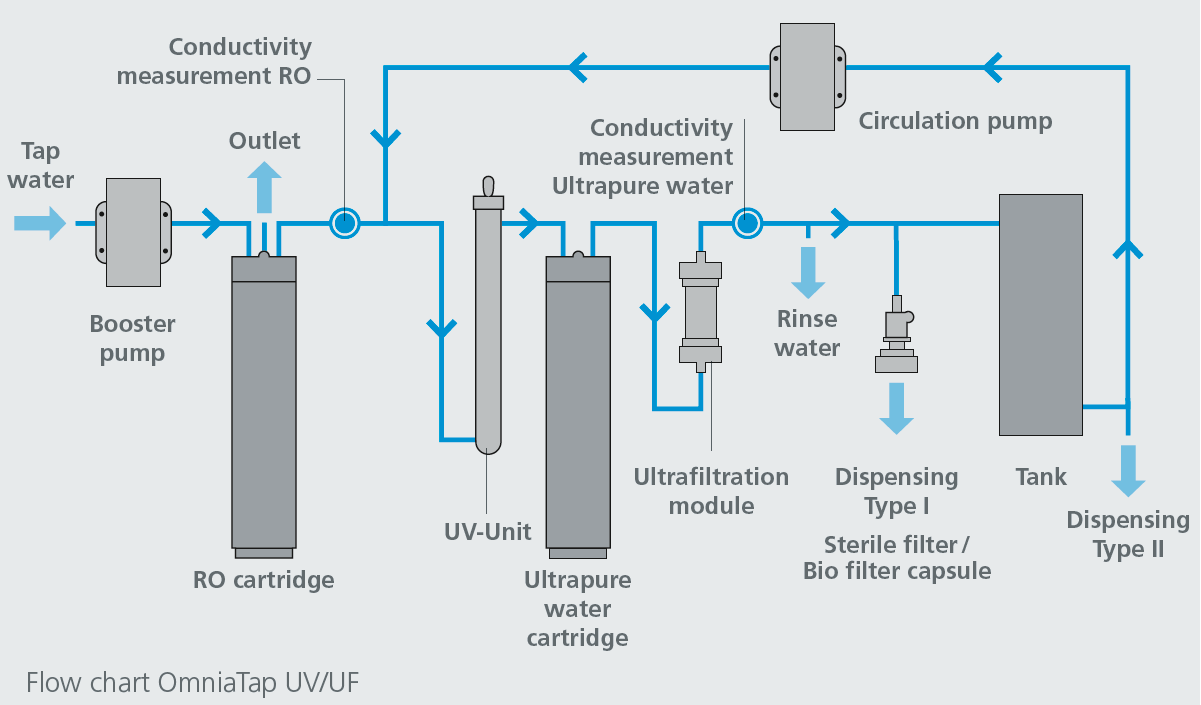

OmniaTap is the all-rounder with integrated reverse osmosis incl. circulation tank for type II pure water and cost-effective ultrapure water generation type I.
The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe.
The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.
The optional storage tank (10, 30 or 60 litres) with recirculation keeps the quality permanently at type II. Downstream terminals can be supplied via an optional pressure output on the pure water tank.
- OptiFill dispenser with LCD display as standard
- Tank volume display in percent
- spent filters are simply and quickly exchanged
- Leakage sensor as standard
- Storage tank with recirculation
- TapWater-Set – direct drinking water connection
- ready-to-use, ready for connection incl. filter inserts
- One-handed operation
- Convenient water withdrawal
- Space-saving on the wall
| OmniaTap | OmniaTap UV | OmniaTap UV/UF | |
|---|---|---|---|
| Pure water values type II | |||
| Pure water performance at 15 °C [l/h] | 12 / 20 | 12 / 20 | 12 / 20 |
| Conductivity at 25 °C [µS/cm] | 0.067 up to 0.1 | 0.067 up to 0.1 | 0.067 up to 0.1 |
| Resistance at 25 °C [MΩ x cm] | 15 up to 10 | 15 up to 10 | 15 up to 10 |
| Pure water tank pressurized outlet | optional | optional | optional |
| Ultra pure water values type I | |||
| Conductivity at 25 °C [µS/cm] | 0.055 | 0.055 | 0.055 |
| Resistance at 25 °C [MΩ x cm] | 18.2 | 18.2 | 18.2 |
| TOC-value* [ppb] | 1 up to 5 | 1 up to 5 | 1 up to 5 |
| Dispensing performance [l/min.] | up to 2 | up to 2 | up to 1.6 |
| Endotoxins* [EU/ml] | < 0.001 | < 0.001 | < 0.001 |
| Particles** > 0,2 µm [1/ml] | < 1 | < 1 | < 1 |
| Bacteria** [KBE/ml] | < 0.01 | < 0.01 | < 0.01 |
| * in dependence on the feedwater quality | ** with sterilizing filter 0.2 μm | ||
| OmniaTap | OmniaTap UV | OmniaTap UV/UF | |
|---|---|---|---|
| Tap water according to DIN 2000 | |||
| Feedwater temperature [°C] | + 2 up to 35 | + 2 up to 35 | + 2 up to 35 |
| Manganese and iron content [mg/l] | < 0.05 | < 0.05 | < 0.05 |
| Free chlorine content [mg/l] | < 0.1 | < 0.1 | < 0.1 |
| Silt density index (SDI) | max. 3 | max. 3 | max. 3 |
| OmniaTap | OmniaTap UV | OmniaTap UV/UF | |
|---|---|---|---|
| Connector size | R3/4″ | R3/4″ | R3/4″ |
| Supply voltage [Volt/Hz] | 90-240/50-60 | 90-240/50-60 | 90-240/50-60 |
| Connected load [kW] | 0.1 | 0.1 | 0.1 |
| Ambient temperature [°C] | + 2 up to 35 | + 2 up to 35 | + 2 up to 35 |
| Dimensions* [W x H x D mm] | 390 x 720 x 615 | 390 x 720 x 615 | 390 x 720 x 615 |
| Weight [kg] | 20 | 21 | 21 |
| * with OptiFill Dispenser | |||
| Article no. | System type* | Typical applications |
|---|---|---|
| 18200101 | OmniaTap 12 | AAS, IC, ICP, buffers and media preparation |
| 18200201 | OmniaTap 20 | AAS, IC, ICP, buffers and media preparation |
| 18200102 | OmniaTap 12 UV | Ultra-trace analysis, ICP-MS, HPLC, TOC |
| 18200202 | OmniaTap 20 UV | Ultra-trace analysis, ICP-MS, HPLC, TOC |
| 18200103 | OmniaTap 12 UV/UF | Life science and microbiology, cell culture media |
| 18200203 | OmniaTap 20 UV/UF | Life science and microbiology, cell culture media |
| * RO cartridge, ultrapure water cartridge, sterile filter capsule 0.2 μm, sterile overflow and sterile vent filter included | ||
| Accessories | |
|---|---|
| 19200300 | Wall mount Omnia |
| 19200056 | Disinfection kit Omnia |
| 19200057 | Disinfectant Omnia – 3 pcs./pack |
| 19200021 | Pre-treatment unit OmniaTap –10“ |
Description
The powerful all-rounder.
For H2O pure type I + II.
OmniaTap is the all-rounder with integrated reverse osmosis incl. circulation tank for type II pure water and cost-effective ultrapure water generation type I.
The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe. The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.
The optional storage tank (10, 30 or 60 litres) with recirculation keeps the quality permanently at type II. Downstream terminals can be supplied via an optional pressure output on the pure water tank.
