Applications

The Scan 300 colony counter is used in the food, environmental, pharmaceutical, cosmetics, veterinary and public institutes research.

https://www.interscience.com/IMG/png/applications_pictos_environnement_en.png

https://www.interscience.com/IMG/png/applications_pictos_pharmaceutique_en.png

https://www.interscience.com/IMG/png/applications_pictos_cosmetique_en.png

https://www.interscience.com/IMG/png/applications_pictos_santeanimale_en.png

https://www.interscience.com/IMG/png/applications_pictos_instituts_publics_en.png

Free trial version of the Scan software

Download to test its efficiency with your samples.

https://www.interscience.com/IMG/png/logicieldemoscan_360x430-min.png

Counting range

https://www.interscience.com/IMG/png/masse-surface.png

Pour and surface plating

Counting of pour and surface plating mode
on Ø 55 – 90 mm Petri dishes.

https://www.interscience.com/IMG/png/denombrement-lecture_spiral.png

Spiral plating

Counting of Spiral plating mode on
Ø 55 – 90 mm Petri dishes

https://www.interscience.com/IMG/png/denombrement-lecture_cercle.png

Circle plating

Counting of circle plating mode
on Ø 55 – 90 mm Petri dishes.

Accuracy and repeatability

The counting of Petri dishes is long, tedious and can vary from person to person.

The Scan 300 can count up to 1000 colonies in 1 second in a constant and repeatable manner. Counting can be up to 98% accuracy. The minimum colony size is 0.1 mm.

Before/after counting on total count

https://www.interscience.com/IMG/png/graphique_comptage_manuel_es.png

Manual counting

https://www.interscience.com/IMG/png/graphique_comptage_auto_es.png

Automatic counting

21 CFR Part 11 included

The Scan software complies with FDA recommendations,
particularly on audit trail and security of results.
The user account management, integrated in
the software, allows the creation of up to
5 levels of rights. The Supervisor-Administrator
has all the roles while the other roles are subject to certain rights. Password management secures user accounts.

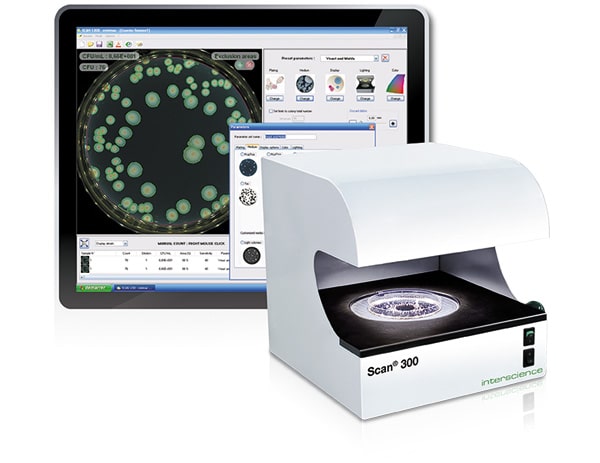

https://www.interscience.com/IMG/jpg/scan300_computer_21cfrpart11_600-min.jpg

Traceability

			Data Import
SIL/LIMS connection	Bar-codes	dataLink	Scan 300 connects to the LIMS in bi-directionality and can be connected to the diluter and automatic plater via dataLink, the traceability system.

	Data Recording
CSV	After each approved counting, the Scan 300 automatically saves and exports the counting parameters and results to a CSV file.

Data Export

Scan 300 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan software, all reports are archived.

Export your results to your PC or archive them in CSV, Excel^TM, OpenOffice^TM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.


SIL/LIMS connection	Audit trail	Backup and archive sessions	PDF	JPG, PNG, BMP	Excel^TM OpenOffice^TM	CSV

Print of the results

All data, images, photos and results
are exportable in printable reports, sca, pdf, jpg, xls, csv.

https://www.interscience.com/IMG/jpg/scan4000_rapportsen.jpg

Dark Field lighting technology

Thanks to the Dark Field technology and its low lighting, colonies are easy to count. The operator does not tire his eyes.

https://www.interscience.com/IMG/jpg/darkfield_380-min.jpg

Traceability ensured
with dataLink

With dataLink, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.

More info

	Scan 300
Reference	436 300
OVERVIEW
Painted stainless steel shell	N
LIMS/SIL connection	N
USB connection	N
Available with dataLink/dataLink pro traceability system	N
Counting on pour, surface, Spiral and circle plated Petri dishes	N
Automatic counting	N
COUNTING
Counting	Automatic with manual control
Automatic separation of clustered colonies	N
Creation of polygonal exclusion zones	N
Manual control to add or substract colonies	N
Counting time	Up to 1000 colonies per second
Minimal size of colony	0.1 mm
SPECIFICATIONS
Color camera	CMOS
Lens	M12 Lens
Zoom	x 28
Resolution (megapixels)	1
White LED Lighting technology	Dark Field
LED Lighting system	Automatic with 6 combinations, top and/or bottom light, white or black background
Petri dish dimensions	Ø 55 mm – Ø 90 mm
Languages	English, French, Japanese, Chinese, Russian, Spanish, German
Voltage – Frequencies	100-240 V~ 50-60 Hz
Fuses	T 3.15 A L 250 V 5×20 mm
Max. Power	20 W
Warranty	3-year (after recording the warranty card)
International protection marking	IP00
Spare parts availability	10 years
Software updates	3 years excluding qualification (after registration of warranty card)
In compliance with	21 CFR Part 11, ISO 7218 and AOAC 977.27
TRACEABILITY
USB Data export	To LIMS, PDF report, jpg, png and bmp images, Excel^TM recountable session
Data security	Modified data traceability in conformity with 21 CFR part 11
Results/traceability	Image / sample number / comments / date / time
PC MINIMUM REQUIREMENTS
Operating sytem	Windows^TM 10 or 11 (or higher)
Processor	Intel i5, 2.8 GHz Quad-Core or higher
RAM	4 GB for use of the Scan
Equipments	USB port free
Screen	1280 X 1024 pixels or higher
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan	28.7 x 27.1 x 28.9 cm
Net weight: Scan	8.42 kg
Box (w x d x h)	50 x 40 x 40 cm
Gross weight: Scan	12 kg
DELIVERED WITH
	1 Scan software, 1 15V power supply, 1 USB cable, 2 validation plates, 1 user manual, 1 conformity certificate / warranty card

Warranty

Scan automatic colony counters have 3-YEAR warranty
(parts and labour) just by sending the warranty card back.

Description

Scan 300

Automatic colony counter

Essential features

Ref. 436 300

Scan 300 is an automatic colony counter that includes the essential features for Petri dish counting. It is specifically adapted to the usual media in food microbiology: PCA, MRS…
