Scan 50 pro-Manual colony counter with HandPad
Bs. 0.00Bs. 0.00
Scan 50 pro
Manual colony counter with HandPad
- Counting on Petri dishes (Ø 55 to 90 mm), PetrifilmTM, MC‑media PadsTM, Compact DryTM, easyPlateTM, filtration membranes
- Dark Field 2: Indirect LED lighting
- HandPad: Ergonomic arm rest
- Data export via USB, LIMS, under CSV format (ExcelTM) or text format (WordTM)
- Headphones included
Applications
Scan 50 pro colony counter is used in the food, environmental, pharmaceutical, cosmetics, veterinary and public institutes research.
 |
 |
 |
 |
 |
 |
Compatible with all types of media
Scan 50 pro is a manual colony counter that is suitable for all types of media: Petri dishes (from Ø 55 to 90 mm), PetrifilmTM, MC‑Media PadsTM, easyPlateTM, filtration membranes…Counting is done by a simple touch pressure and is then recorded. You can count from 0 to 1999 CFU.
 |
 |
 |
 |
 |
 |
 |
| Surface and pour | Spiral | Circle | Chromogenic | PetrifilmTM Compact DryTM MC-Media PadsTM easyPlateTM |
Filtration membranes | From Ø 55 to 90 mm |
Contrasting colony lighting: Dark Field 2
Dark Field 2 is an indirect lighting system with adjustable intensity. Light reflectors diffuse the light at all points without any reflections or shadows. It makes all colonies stand out on the surface, in the mass and around the edge of the dish. Flashes of light are eliminated and the operator’s eyes are protected.
 |
 |
Dark Field 2 indirect lighting |
Scan 50 pro Standard lighting lighting |
Touch surface with adjustable sensitivityCounting with Scan 50 pro is intuitive: count the colonies on your dish, the touch surface is doubled by a sound or light signal. |
 |
Ergonomics redesigned
 |
Audio Comfort
Light signal
Optimal working posture
|
 |

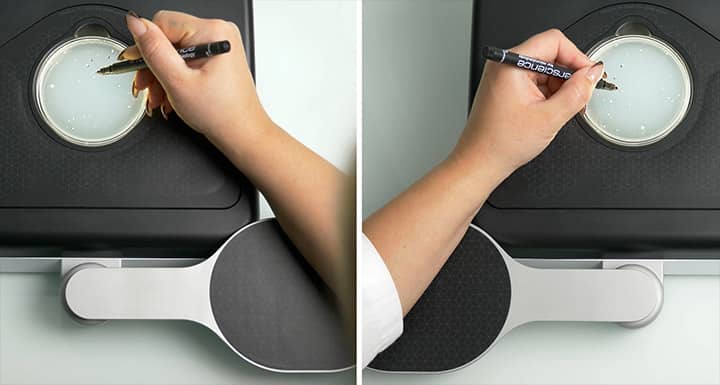

Ambidextrous
|
HandPadScan 50 pro is equipped with a HandPad, an |
 |
|
|
Easy to clean and disinfectTo keep the workstation clean, the glass |
 |
 |
 |
 |
TraceabilitySave time by exporting the data recorded |
| Scan 50 pro | |
| Reference | 435 055 |
| OVERVIEW | |
| Painted stainless steel shell | N |
| LIMS/SIL connection | N |
| USB connection | N |
| Counting on pour, surface, Spiral and circle plated Petri dishes | N (manual) |
| Counting on chromogenic dishes | N (manual) |
| Counting on PetrifilmTM, Compact DryTM, MC-Media PadsTM, EasyPlateTM, filtration membranes | N (manual) |
| Counting on 100% of the Petri dish | N |
| White LED lighting without reflections | N |
| HandPad: ergonomic arm-rest | N |
| Headphones included | N |
| COUNTING | |
| Counting | Manual (0-1999 CFU) |
| Manual control to add or substract colonies | N |
| Counting light signal | N |
| Adjustable counting beeps | 9 different sounds / 5 volume levels |
| Counting zone | Touch surface with adjustable sensitivity |
| SPECIFICATIONS | |
| White LED Lighting technology | Dark Field 2 |
| LED Lighting system | 5 intensity levels |
| Petri dish dimensions | Ø 55 mm – Ø 90 mm |
| Voltage – Frequencies | 100-240 V~ 50-60 Hz |
| Max. Power | 20 W |
| Warranty | 3-year (after recording the warranty card) |
| International protection marking | IP20 |
| Spare parts availability | 10 years |
| In compliance with | ISO 7218 and FDA BAM (Bacteriological Analytical Manual) |
| TRACEABILITY | |
| USB Data export | To LIMS, as CSV spreadsheet (ExcelTM) or text file (WordTM) |
| Results/traceability | Counting result / sample number (with barcode reader connected) |
| WEIGHT AND DIMENSIONS | |
| Dimensions (w x d x h): Scan | 37.6 x 35.2 x 15.1 cm (HandPad open) |
| Dimensions (w x d x h): Scan + Magnifying lens (Ref. 435 001) | 37.6 x 54 x 33.5 cm (HandPad open) |
| Net weight: Scan | 4.45 kg |
| Net weight: Scan + Magnifying lens (Ref. 435 001) | 5.13 kg |
| Box (w x d x h) | 35 x 45 x 40 cm |
| Gross weight: Scan | 6.15 kg |
| Gross weight: Scan + Magnifying lens (Ref. 435 001) | 6.83 kg |
| DELIVERED WITH | |
 |
1 power cord, 1 USB cable, 1 black marker pen, 1 white diffusing background, 1 user manual, headphones, 1 conformity certificate / warranty card. Attention: The magnifying lens is optional (Ref. 435 001) |
WarrantyScan 50 pro colony counters have 3-YEAR warranty |
|
Description
Scan 50 pro
Manual colony counter with HandPad
Ref 435 055
Scan 50 pro is a manual colony counter with HandPad and multiple ergonomic supports for improved posture, vision and hearing. It offers a contrasted lighting of the colonies while protecting the eyes. The export of the counting result, by USB to a computer, ensures the traceability of the data.
